Changzhou Laiyi Plastics Machinery Co., Ltd. was estalished in 2007 and changed to Jiangsu Laiyi Packing Machinery Co., Ltd in 2015. The new factory with enlarged scale and advanced technology in the new district has improved its brand influence and become the industry leader in the forefront of China with a large number of market share in Chinese extrusion laminating machine industry. Especially in PVDF solar energy backplane film industry, Laiyi has been in the lead in China.
Jiangsu Laiyi has been highly recognized and praised in domestic extrusion laminating industry since 2007 and has increasing market share.
As more and more cooperation relationships with foreign enterprises, Jiangsu Laiyi has established a good reputation in the international market.
Jiangsu Laiyi is working on becoming one of the first class packing machinery manufacturers in the world by our professional quality and superior service
1. Release Paper Extrusion Laminating Machine
Technical parameters
| Machine width | 1200/1400/1700mm |
| Effective width | Max 1100/1300/1600mm |
| Machine speed | 300-350m/min |
| Screw diameter | LD-90mm/LD-100mm/LD-115mm,Auto lifting type extruder |
| Extruder output | Max 300kg/h,400kg/h or 550kg/h |
| Used resins | Coated resins like LDPE/LLDPE/PP/EVA |
| Coating thickness | 8-45μm |
| Maxdiameter | Unwinder:Φ1200mm;Rewinder:Φ1200mm |
| Basic material | Paper(35-200gsm) |
| Dimension(L*W*H) | Single:19.2*(9.5-12)*4.5m |
2. Main Features
1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .
2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed
3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple
4) Hydraulic lamination structure design , can make coating thinner and firm .
5) Trimming device make the finished coated paper rolls even
6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible

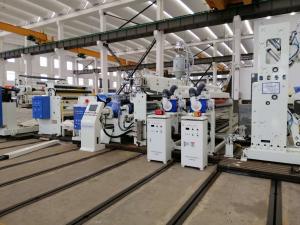

Single sided release paper laminating machine
