Max 150m/min machine speed 380V 50Hz Siemens motor brand PET film laminator
Specification:
| Machine width | 1200mm,1550mm |
| Effective width | Max1100mm,1400mm |
| Machine speed | 150m/min |
| Screw diameter | Φ100mm,Φ115mm |
| Extruder output | Max 250kg/h ,300kg/h |
| Resins | EVA |
| Coating thickness | 8-45μm |
| Max unwinder and rewinder diameter | Φ800mm |
| Basic material | PET film |
Main constructions:
1) Double Shaft-less paper roll stands suitable for 3-6 inch paper core,automatic lift ,easier operation .
2) Auto splicer device realize paper in 150-300 m/min speed exchange without decrease machine line speed
3) Ultrasonic type EPC system,makes frequent replacement materials operation more simple
4) Hydraulic lamination structure design , can make coating thinner and firm .
5) Trimming device make the finished coated paper rolls even
6)Special cutting knife and rewinder design makes high speed rewinding shafts exchange possible.
Compound machine
- The coumpound device consist of cooling roller, silicone rubber pressure roller, back-up roller, discharge roller, trimming deflashing device, wheelwork pneumatic device and some other devices. It is used to combine melted sheet film with basic materials and is the key device of extrusion lamination or extrusion coating. Its main functions are composite, cooling and shaping.
- Its production line is equipped with external hard chromium plating and steel rollers with double-deck clamp cover auger-type screw channel. the clamp cover of screw channel is filled witth cooling water to take away the heat of melted thin film so that composite thin film can get a great result in cooling shaping, and this greatly improves the fastness, smoothness and external beauty of composite.
Extruder
- Extrusion machine is the key of extrusion laminating equipment and consists of screw,barrel and transmission mechanism. It has the functions of delivering, fusing, measuring, mulling of solid materials and delivering melt.
- Laiyi's self-developed screw is high-speed,high-cutting and high-mixing, and has many advantages like large extrusion output, low heat, small changes in extrusion pressure, no extrusion of non melt resins, no bubbles and energy saving.
- The extruder can equip newly designed auto-lifting function that can adjust air gap height at any time to adjusting the most suitable air gap height according to line speed.
Pls feel free to contact us as below:
" Professional qualifications to create brand" is Laiyi's business objective!
"Create excellece by quality, prvide service with honesty" is
Laiyi's business prupose!
Product Tags:
|
|

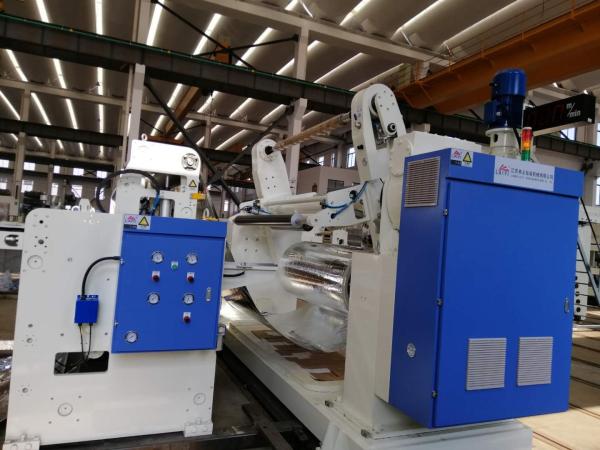

150m/Min PET Film 300kg/H Extrusion Coating Lamination Machine Images
|
